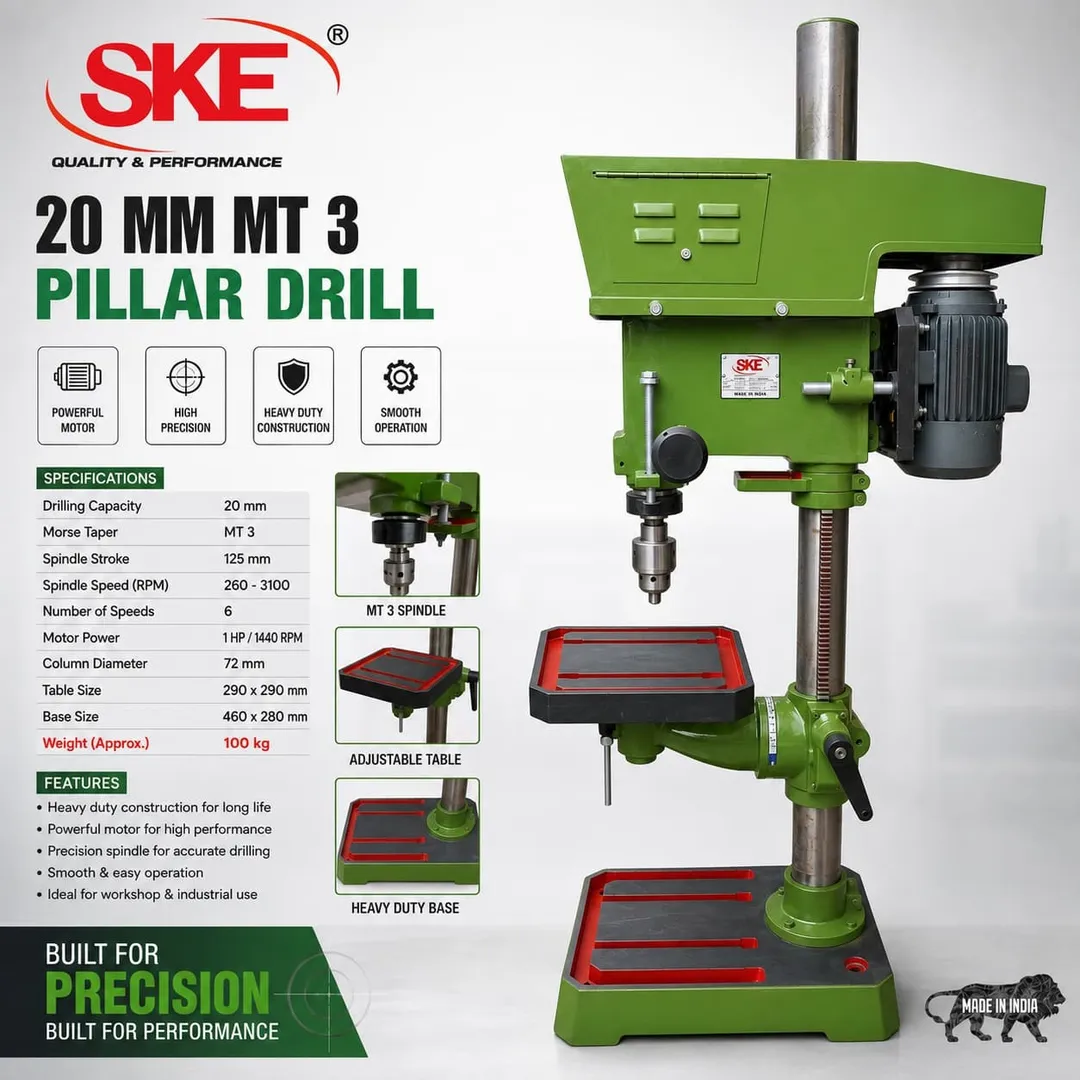

A 20 mm pillar drill machine is a stationary drilling machine designed to drill holes of up to approximately 20 mm diameter in metal, wood, plastic, and other materials. It consists of a vertical column, motor, spindle, chuck, and adjustable work table. Working Principle The basic power transmission is: Electric Motor → Belt/Pulley Drive → Spindle → Drill Chuck → Drill Bit → Workpiece The electric motor rotates the spindle through a belt and pulley arrangement. The drill chuck holds the drill bit securely. The workpiece is placed and clamped on the drill table. The operator lowers the spindle using the feed handle. The rotating drill bit cuts into the workpiece and produces the required hole. Different spindle speeds can be selected according to the material and drill-bit diameter. Main Components Electric motor – Provides rotary power. Pulley and belt system – Transmits power and allows speed selection. Spindle – Rotates the drill chuck. Drill chuck – Holds the drill bit. Drill bit – Performs the cutting operation. Feed handle – Moves the drill spindle vertically. Work table – Supports the workpiece and can usually be adjusted in height/angle. Pillar/column – Provides vertical support and rigidity. Base – Supports the complete machine. Depth stop – Controls the drilling depth. ON/OFF switch – Controls machine operation. Specifications Typical specifications for a 20 mm pillar drill may include: Maximum drilling capacity: 20 mm Power: Depending on the machine model Spindle: Vertical spindle arrangement Speed: Multiple selectable speeds Drive: Motor-driven belt and pulley Operation: Manual feed Work table: Adjustable
